Carver™ CARVER C7 UPGRADE KIT

CARVER C7 UPGRADE KIT

Starting in 2009 we upgraded our Bottom Thrust Bearing Washers from standard thickness to double thickness. These heavy-duty Washers are much more durable than the standard thickness Washers, but in order to fit them into the C7 we had to make more room on the Arm Bearing Plate for them.

So if you have a pre-2009 C7 and you need to replace your Thrust Bearings for any reason, whether because you have a cracked Washer or a rusty or worn out Thrust Bearing Set, this Kit will provide you with all the parts you need to rebuild your C7 with the latest improvements, including our newest Link, made with Grade 8 steel with extra side ribs at the bend for extra strength.

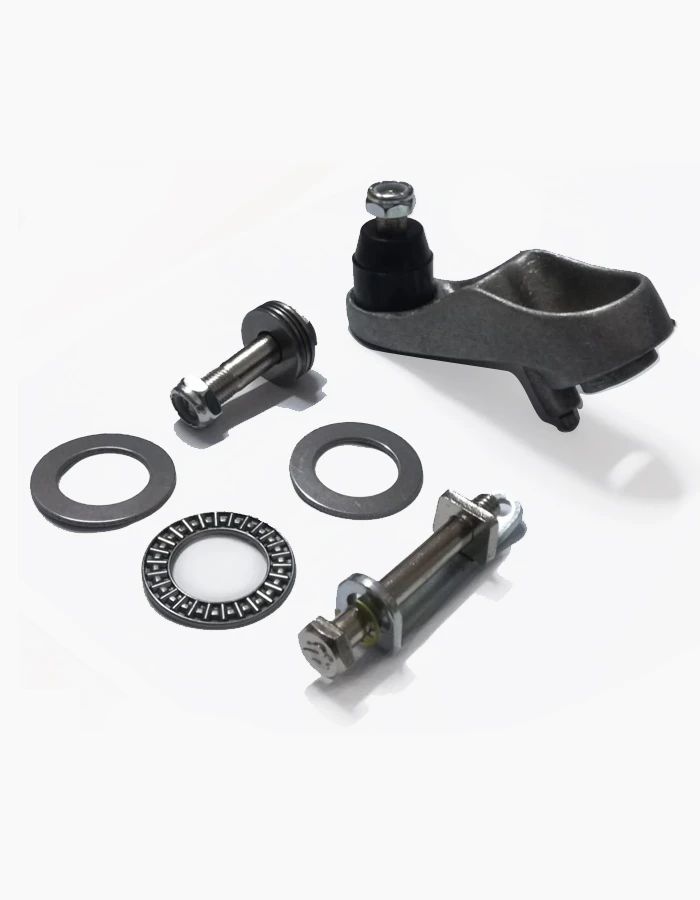

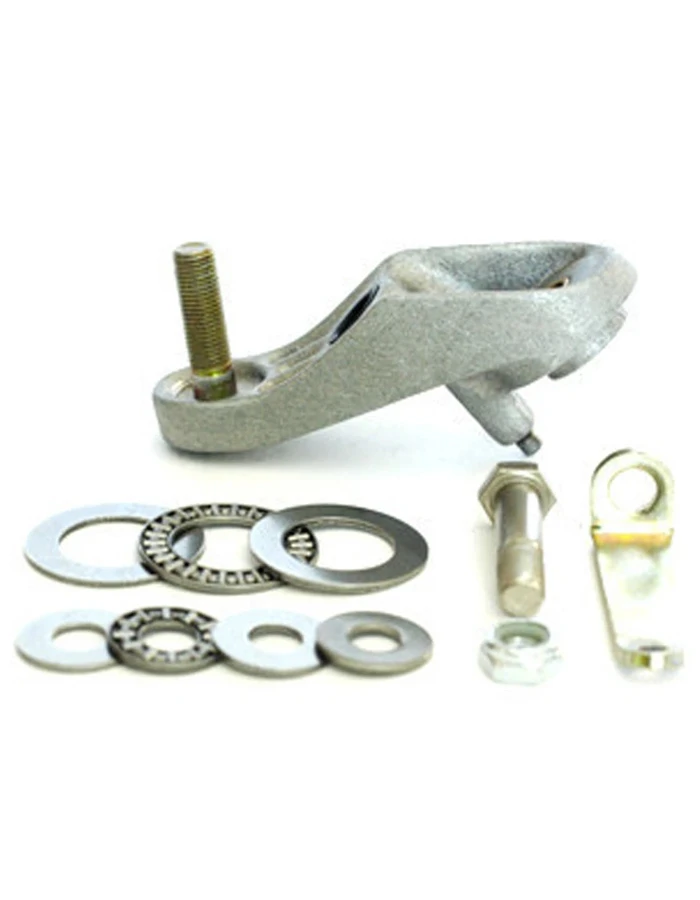

The C7 Upgrade Kit includes:

1x C7 Arm with Kingpin, Bronze Bearing and Pivot Cup already pressed in.
1x C7 Link
1x 3/8″ ID x 15/16″ OD Top Thrust Bearing
2x 3/8″ ID x 15/16″ OD Top Thrust Washers
1x 3/8″ ID x 7/8″ OD Top Washer
1x 7/8″ ID x 1 3/8″ OD Bottom Thrust Bearing
2x 7/8″ ID x 1 3/8″ OD Bottom Thrust Washers
1x 3/8-24 TPI x 1 ½” Long Pivot Bolt
1x 3/8-24 TPI Nylock Nut
